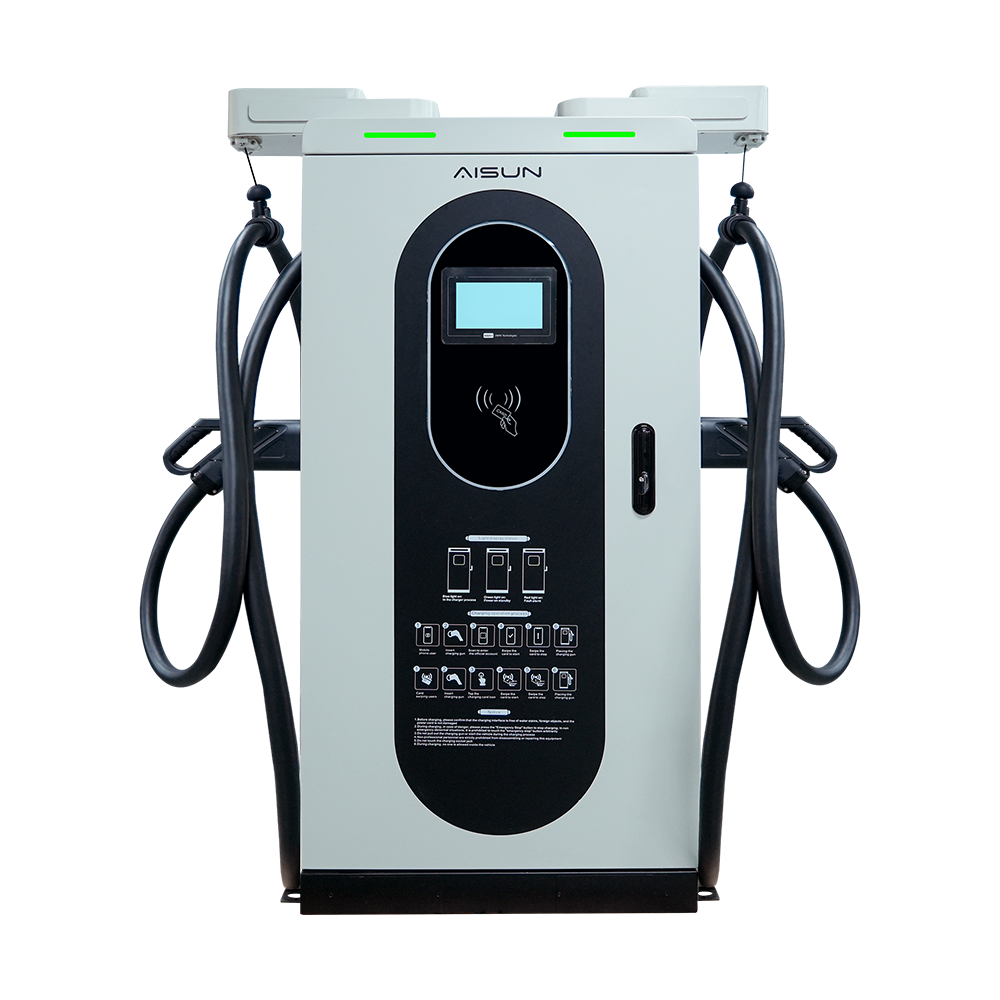

80kW / 120kW / 160kW / 200kW / 240kW DC Electric Vehicle (EV) Charger – European Standard

The AISUN European Standard DC Fast Charger is a high-performance commercial charging solution engineered to meet the growing demands of modern electric mobility. Featuring full OCPP 1.6 compatibility, it integrates seamlessly with diverse backend management systems and supports intelligent operation.

Designed to charge up to two electric vehicles simultaneously, the charger utilizes dynamic load balancing to optimize power distribution across multiple outputs. Delivering substantially higher power compared to conventional AC chargers, it enables ultra-fast charging times, making it ideal for high-traffic urban areas, commercial parking facilities, and highway service stations.

Equipped with an advanced cable management system, the AISUN DC Fast Charger ensures a clean, safe, and user-friendly charging experience. As the demand for EV infrastructure accelerates, this charger provides a reliable and efficient solution to support large-scale EV adoption while enhancing the overall charging network.

Send email to us Document Download

Product Detail

Product Tags

Feature

High Voltage Output: Supports 200–1000V, compatible with a wide range of electric vehicles, from compact cars to large commercial buses.

High Power Output: Provides ultra-fast charging, making it ideal for large parking facilities, residential communities, and shopping malls.

Intelligent Power Distribution: Ensures efficient energy allocation, with each power module operating independently for maximum utilization.

Stable Input Voltage: Handles fluctuations up to 380V ± 15%, maintaining continuous and reliable charging performance.

Advanced Cooling System: Modular heat dissipation with adaptive fan control to minimize noise and enhance system longevity.

Compact, Modular Design: Scalable from 80kW to 240kW to accommodate various installation requirements.

Real-Time Monitoring: Integrated backend system provides live status updates for remote management and diagnostics.

Dynamic Load Balancing: Optimizes load connections for efficient and stable operation.

Integrated Cable Management System: Keeps cables organized and protected for a safer and more user-friendly charging experience.

Specification of Portable EV Charger

Model	EVSED-80EU	EVSED-120EU	EVSED-160EU	EVSED-200EU	EVSED-240EU
Rated Output Voltage	200-1000VDC
Rated Output Current	20-250A
Rated Output Power	80kW	120kW	160kW	200kW	240kW
Number of Rectifier Modules	2pcs	3pcs	4pcs	5pcs	6pcs
Rated Input Voltage	400VAC+15%VAC (L1+L2+L3+N=PE)
Input Voltage Frequency	50Hz
Input Max. Current	125A	185A	270A	305A	365A
Conversion Efficiency	≥ 0.95
Display	10.1 inch LCD screen & touch panel
Charging Interface	CCS2
User Authentication	Plug&charge/ RFID card/ APP
Open Charge Point Protocol	OCPP1.6
Network	Ethernet, Wi-Fi, 4G
Cooling Mode	Forced air cooling
Working Temperature	-30℃-50℃
Working Humidity	5% ~ 95%RH without condensation
Protection Level	IP54
Noise	<75dB
Altitude	Up to 2000m
Weight	304KG	321KG	338KG	355KG	372KG
Support Language	English (Custom Development for Other Languages)
Cable Management System	Yes
Protection	Over current, Under voltage, Over voltage, Residual current, Surge, Short circuit, Over temperature, Ground fault
