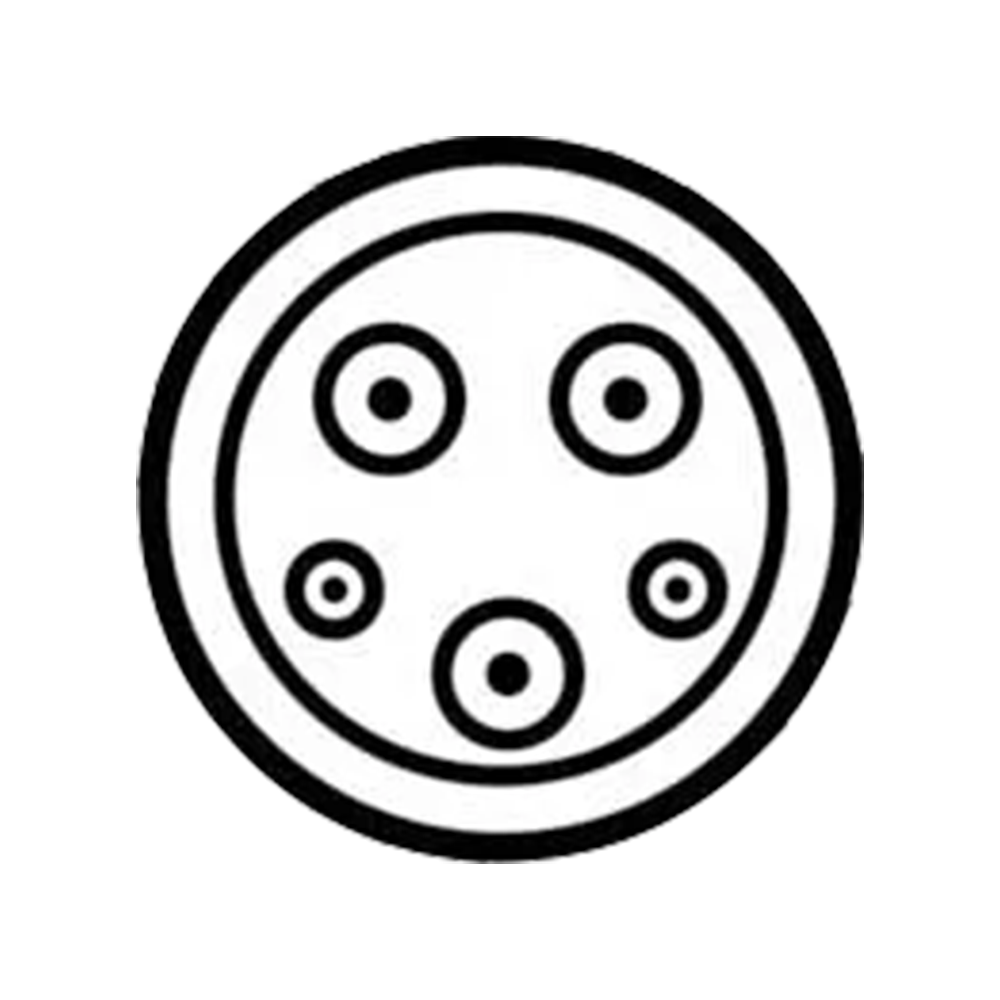

● Universal Compatibility: Works with most EVs in North America and Japan.
● Portable & Lightweight: Easy to carry and store for flexible charging.
● Adjustable Current: Customize charging speed to fit your needs.
● Certified Safe: Fully compliant with safety and quality standards.
● IP65 Protection: Water and dust resistant for outdoor use.
● Real-Time Temperature Monitoring: Prevents overheating for safer charging.
● Multiple safety protection: Includes over-voltage, over-current, and short-circuit protection.
|
Model |
EVSEP-7-UL1 |
EVSEP-9-UL1 |
EVSEP-11-UL1 |
| Electrical Specifications | |||
| Operating Voltage |
90-265Vac |
90-265Vac |
90-265Vac |
| Rated Input/ Output Voltage |
90-265Vac |
90-265Vac |
90-265Vac |
| Rated Charge Current(max) |
32A |
40A |
48A |
| Operating Frequency |
50/60Hz |
50/60Hz |
50/60Hz |
| Shell Protection Grade |
IP65 |
IP65 |
IP65 |
| Communications & UI | |||
| HCI |
Indicator + OLED 1.3” display |
Indicator + OLED 1.3” display |
Indicator + OLED 1.3” display |
| Communication Method |
WiFi 2.4GHz/ Bluetooth |
WiFi 2.4GHz/ Bluetooth |
WiFi 2.4GHz/ Bluetooth |
|
General Specifications |
|||
| Operating Temperature |
-40℃ ~+80℃ |
-40℃ ~+80℃ |
-40℃ ~+80℃ |
| Storage Temperature |
-40℃ ~+80℃ |
-40℃ ~+80℃ |
-40℃ ~+80℃ |
| Product Length |
7.6 m |
7.6 m |
7.6 m |
| Body Size |
222*92*70 mm |
222*92*70 mm |
222*92*70 mm |
| Product Weight |
3.4 kg (N.W.) |
3.6 kg (N.W.) |
4.5 kg (N.W.) |
| Package Size |
411*336*120 mm |
411*336*120 mm |
411*336*120 mm |
| Protections |
leakage protection, over temperature protection, surge protection, Over-current |
||
